imt production

FCT/ICT inline handler

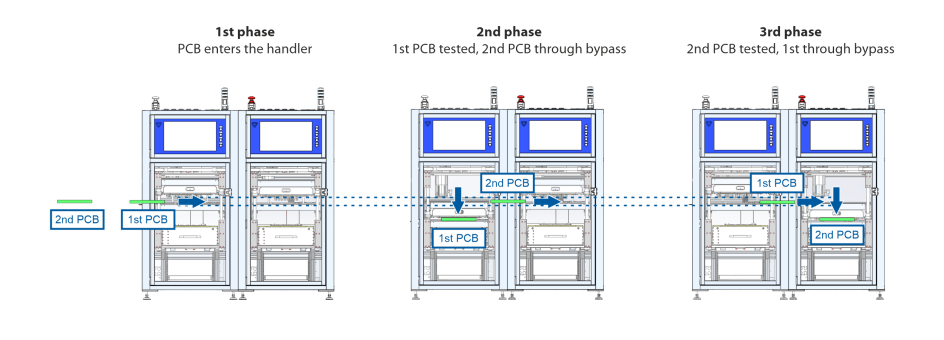

Inline handler/tester IMT is a universal solution for both high volume and flexible production. The device is designed for a fully automated handling and testing of PCBs and offers a variety of settings. We offer the handler itself and the possibility to build in a turn-key testing HW and SW.

Category Inline handler/tester, FCT and ICT
Our solution Electrical and functional testing
Supplier IMT production

Main features and benefits of the device

  • Pressing force 750kg (aprx. 3500 probes)
  • DUT size up to 400 x 400mm
  • Handling tact time (fixture included) 5s
  • Automatic conveyor settings
  • Automatic scanner settings
  • SMEMA or Hermes communication
  • PLC – Beckhoff/Siemens
  • Fast fixture exchange (under a minute)
  • Custom modifications e.g. laser marking, optical control
  • Fixture tester interface – Virginia Panel or TTI blocks
  • Top, bottom or side contacting
  • Integration of third party instruments
  • Possibility to test PCBs or products in Bosch pallets
  • Dimensions 190x90x170 cm
  • Manufactured in Czech Republic

Parametres of the handler

Pressing force 7500 N (approx. 3500 test pins)
PCBA max size 400 x 400 mm
PCBA min size 40 x 40 mm
PCBA thickness unlimited
PCBA max weight 3 kg
Top clearance 58 mm
Bottom clearance 40 mm
Handler weight 500 kg
Tact time (fixture contacting included) 5 seconds
Dimensions 1090 x 850 x 1820 mm
Power supply 3x 400VAC, 50/60 Hz
Control PLC Siemens (Beckhoff on demand)
