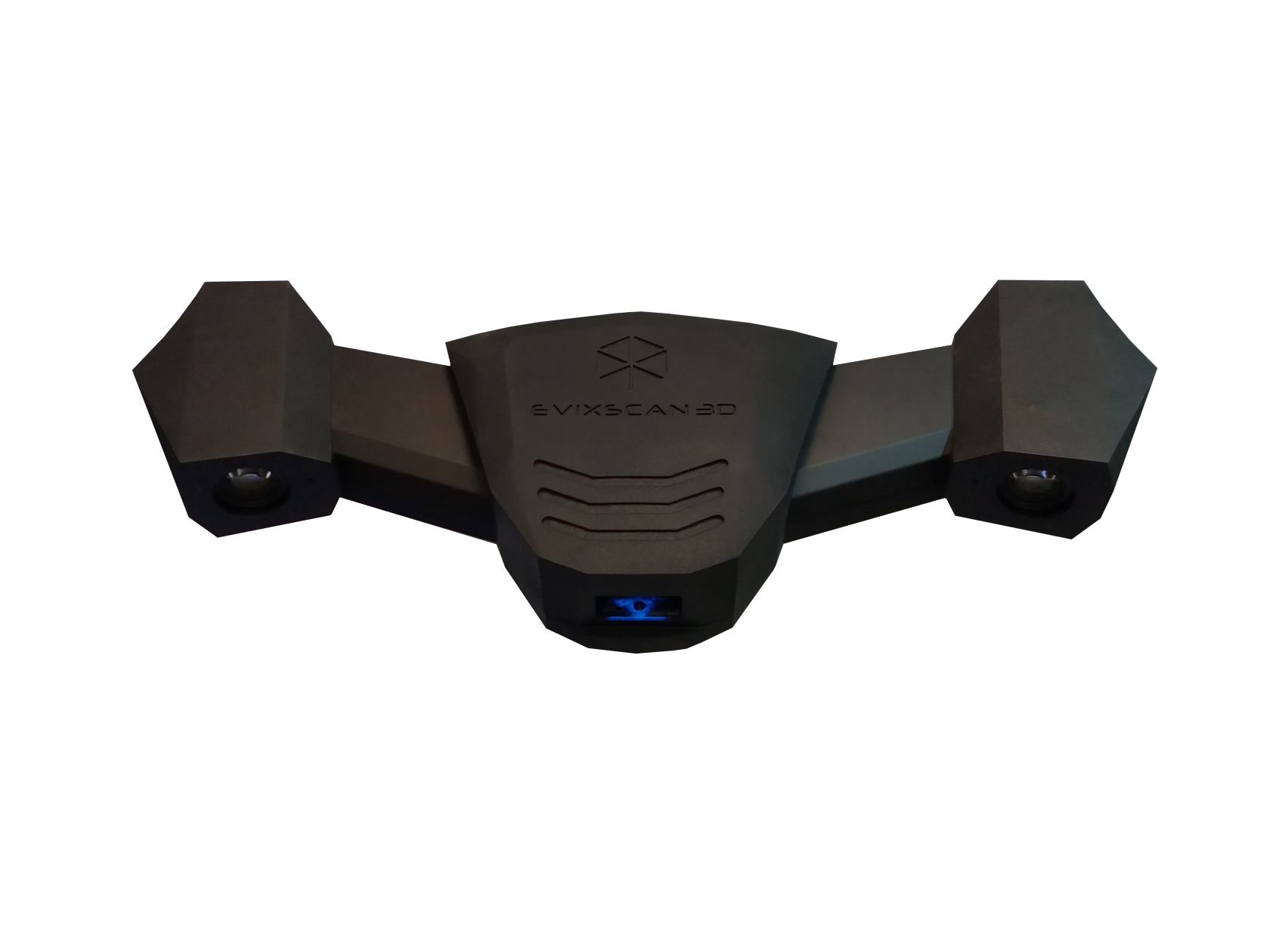

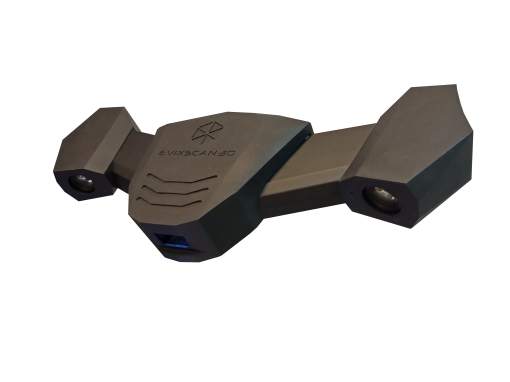

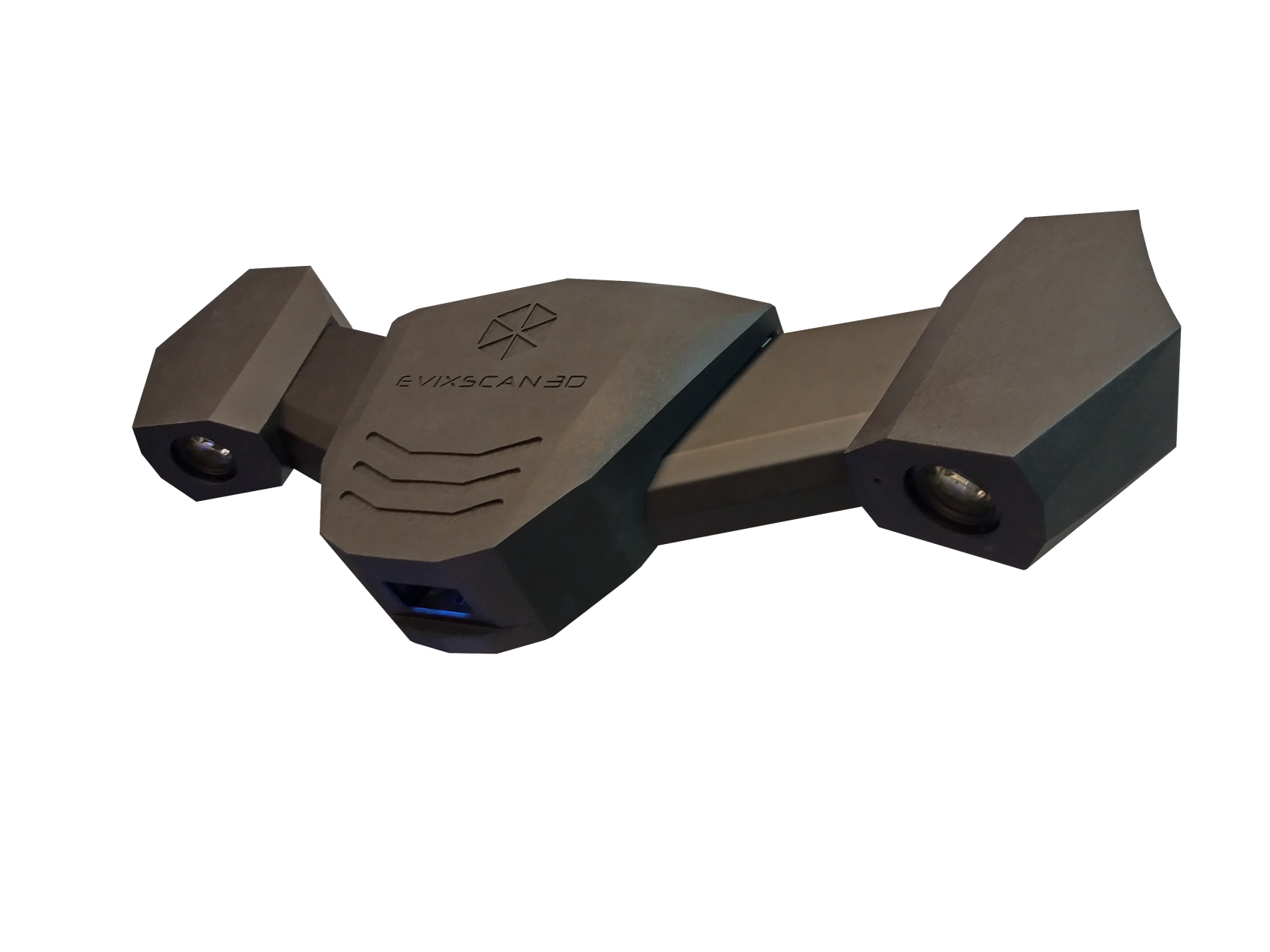

WideRange 65
EviXscan 3D WideRange 65, has been designed specifically with quality control in mind. The scanner allows precise quality control of large objects (ranging from 300 to 1200 mm) in the shortest possible time. Only 1.2 second is needed for WideRange 65 to take a single 3D scan. The number of scans that are necessary for captuing shapes and dimensions of large parts is reduced due to the scanning range of WideRange 65 (575 x 290 x 240 mm).
| Category | 3D scanners |
|---|---|
| Our solution | NDT |
| Supplier | EviXscan 3D |
Main features and benefits of the device
- High efficiency and accuracy for scanning large objects
- High scanning quality and accuracy with large working area
- Short scan acquisition time
- Easy integration with robots and cobots
- Excellent value for money
The WideRange 65 is a perfect tool for quality control applications, reverse engineering and rapid prototyping tasks of larger parts.
| Light source type | Blue LED |
| Type of cameras | 8,9 Mpix |
| Scanning accuracy | up to 0.009 mm |
| Scanning time | 1 second |
| Measuring range | 575 x 290 x 240 mm |
| Points density | 54 pt/mm2 |
| Computer connection | USB 3.0 |
| Export formats | stl, ply, obj, asc, bin |
| Hardware requirements | Windows 10 (64 bit) |
| Software | eviXscan 3D Suite |
Options and accessories
- Standard set – rotary table, markers, toolkit box and tripod
- Blue filters
- Rotary tables
- Toolkit box
- Tripod
- Column Stand
- Software Geomagic Control X
For full detail of an accessories visit this page
Software
Software provides the user with extensive and friendly tools for scanning and processing meshes. Thanks to the transparent operation, the user will easily go through all stages of 3D scanning, from the basic configuration to the final processing of the triangle mesh, which significantly improves the productivity of working with the eviXscan 3D scanners.
