Quadro+

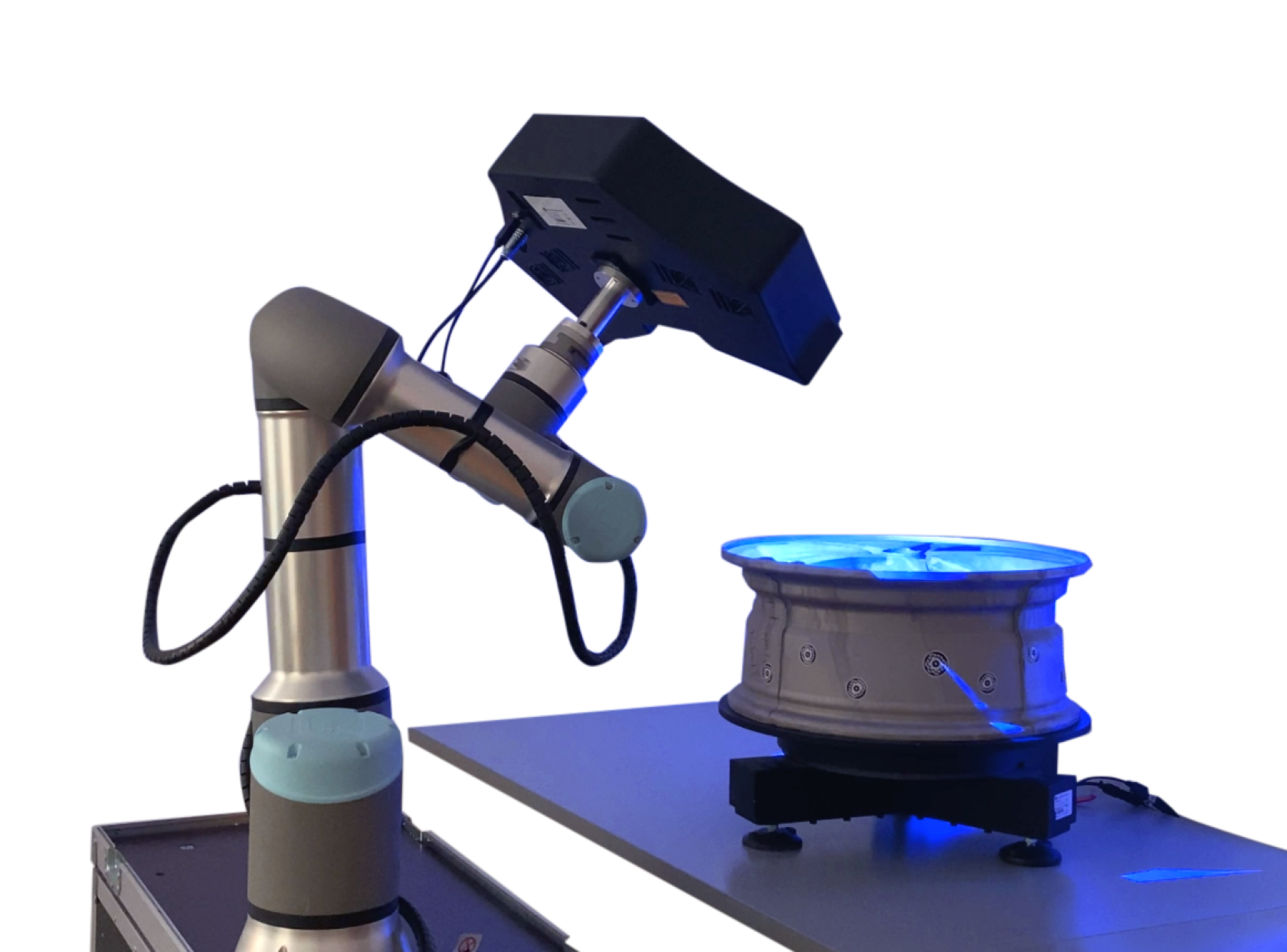

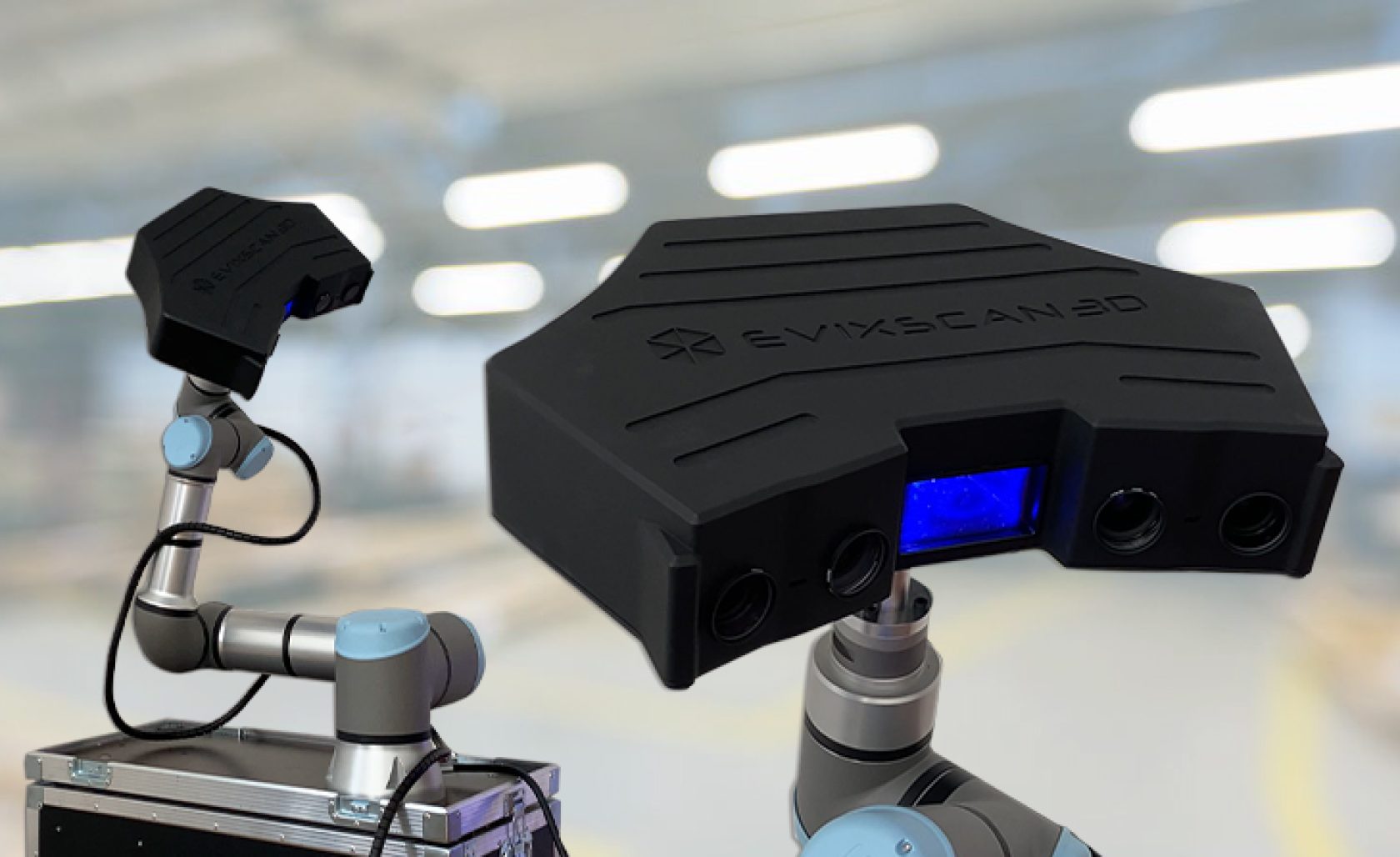

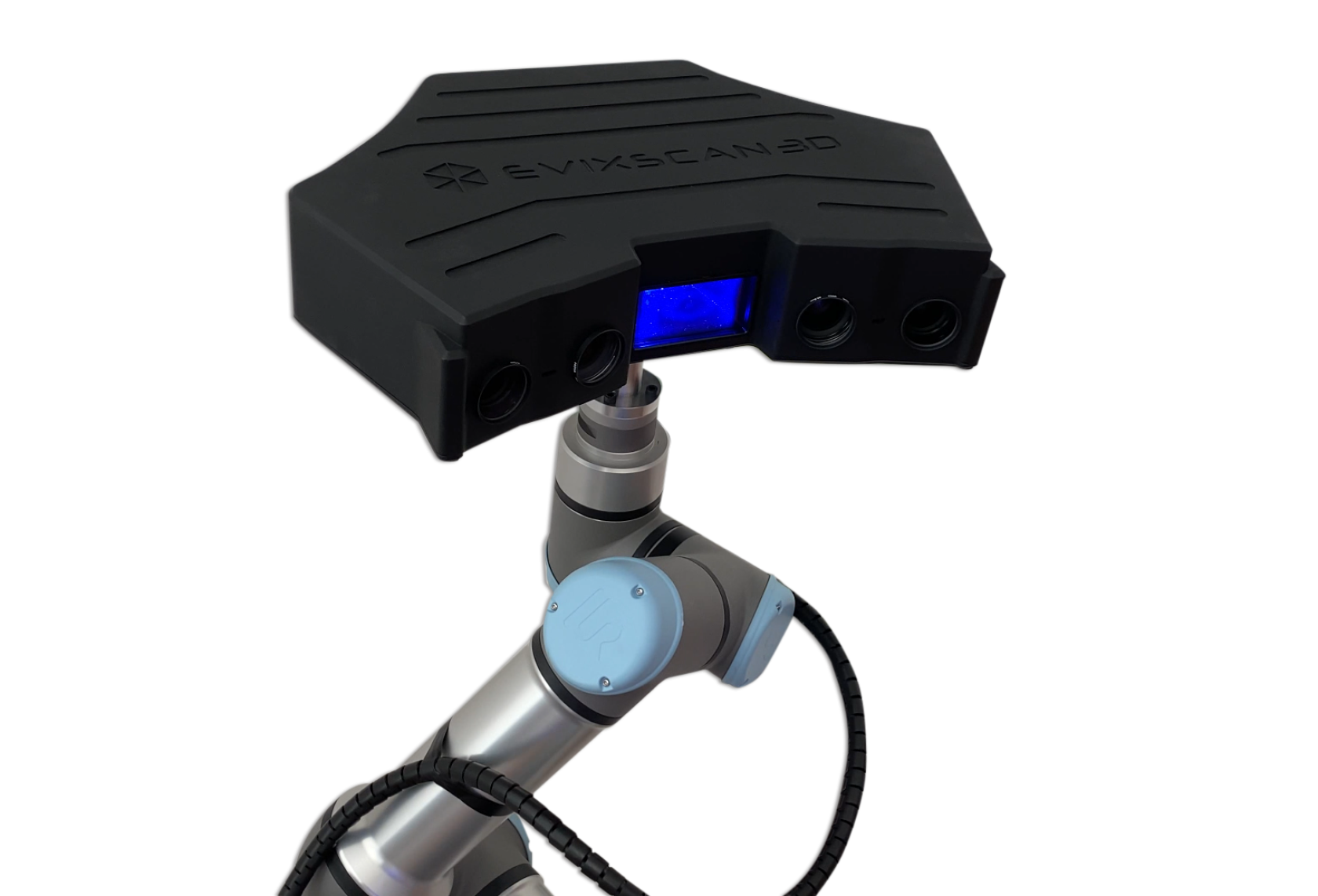

Two scanning ranges are the Quadro+’s most important feature for versatility. They allow both the precise measurement of small parts with very high accuracy and the rapid geometry measurement of large objects. The device’s inner range enables objects from 120 to 450 mm in size to be scanned efficiently. In case of the outer range the recommended size of the scanned items is from 250 to 1000 mm. The ability to combine point clouds from the two ranges significantly increases the scanner’s range of applications. Quadro+ is very versatile and can be easily integrated with robots and cobots on production lines.
| Category | 3D scanners |
|---|---|
| Our solution | NDT |
| Supplier | EviXscan 3D |
Main features and benefits of the device
- Two scanning ranges in one device
- Ease of changing the range via software

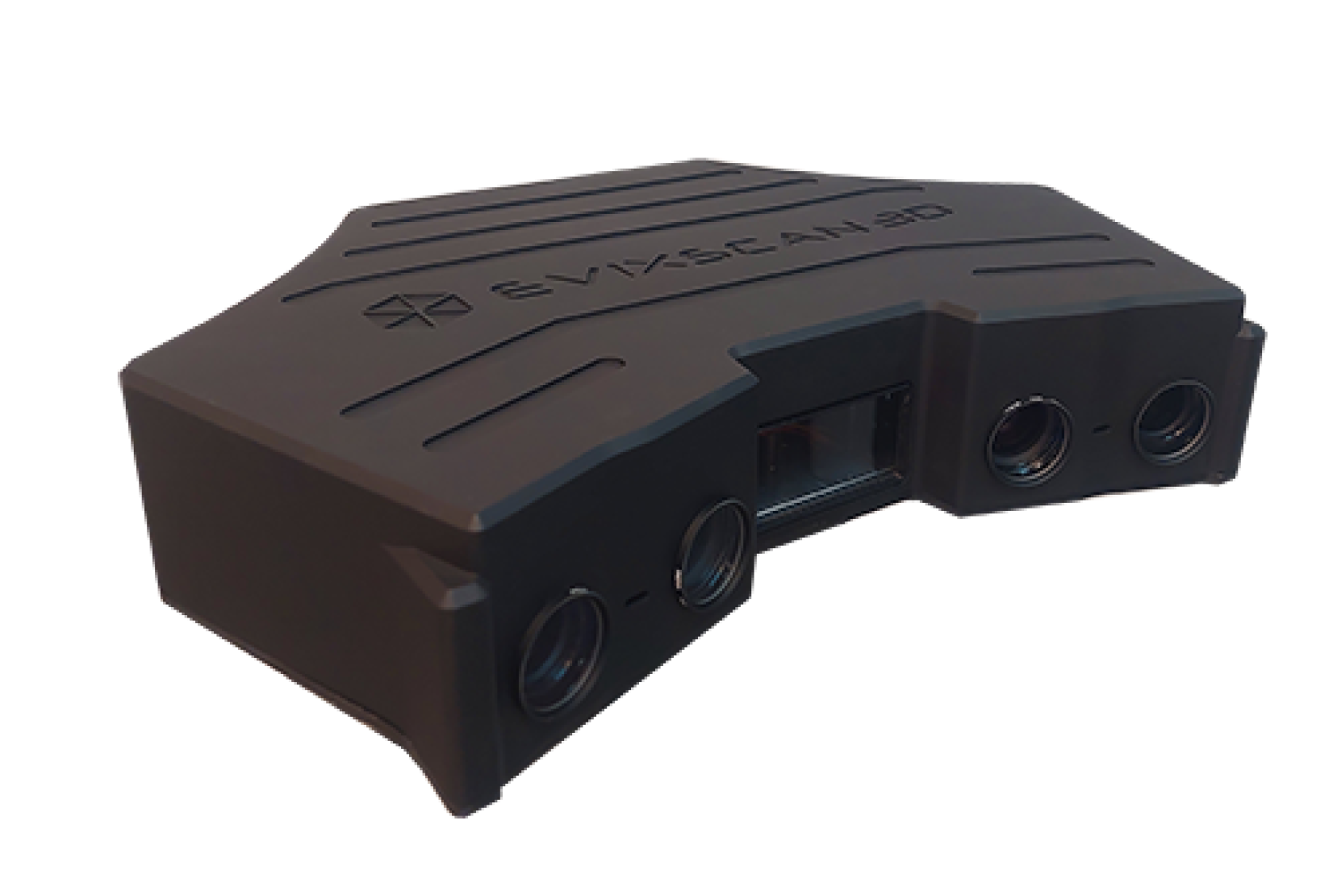

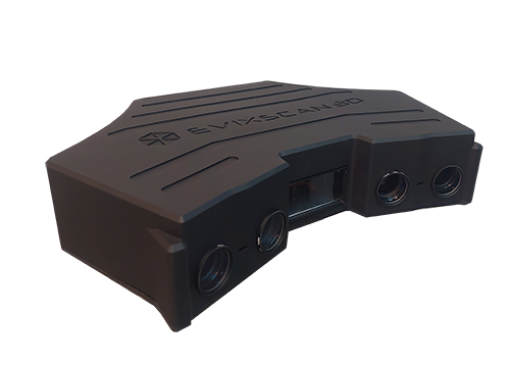

- New vacuum cast housing
- Short scanning time
- Four cameras 9 and 12 Mpix
| Light source type | Blue LED |
| Number and type of cameras | 2 x 12 Mpix , 2 x 9 Mpix |
| Scanning accuracy | up to 0.007 mm |
| Scanning time | 1.2 second |
| Inner measuring range | 220 x 160 x 90 mm |
| Outer measuring range | 450 x 225 x 180 mm |
| Inner points density | 351 pt/mm2 |
| Outer points density | 88 pt/mm2 |
| Computer connection | USB 3.0 |
| Export formats | stl, ply, obj, asc, bin |
| Hardware requirements | Windows 10 (64 bit) |
| Software | eviXscan 3D Suite |
Options and accessories
- Standard set – rotary table, markers, toolkit box and tripod
- Blue filters
- Rotary tables
- Toolkit box
- Tripod

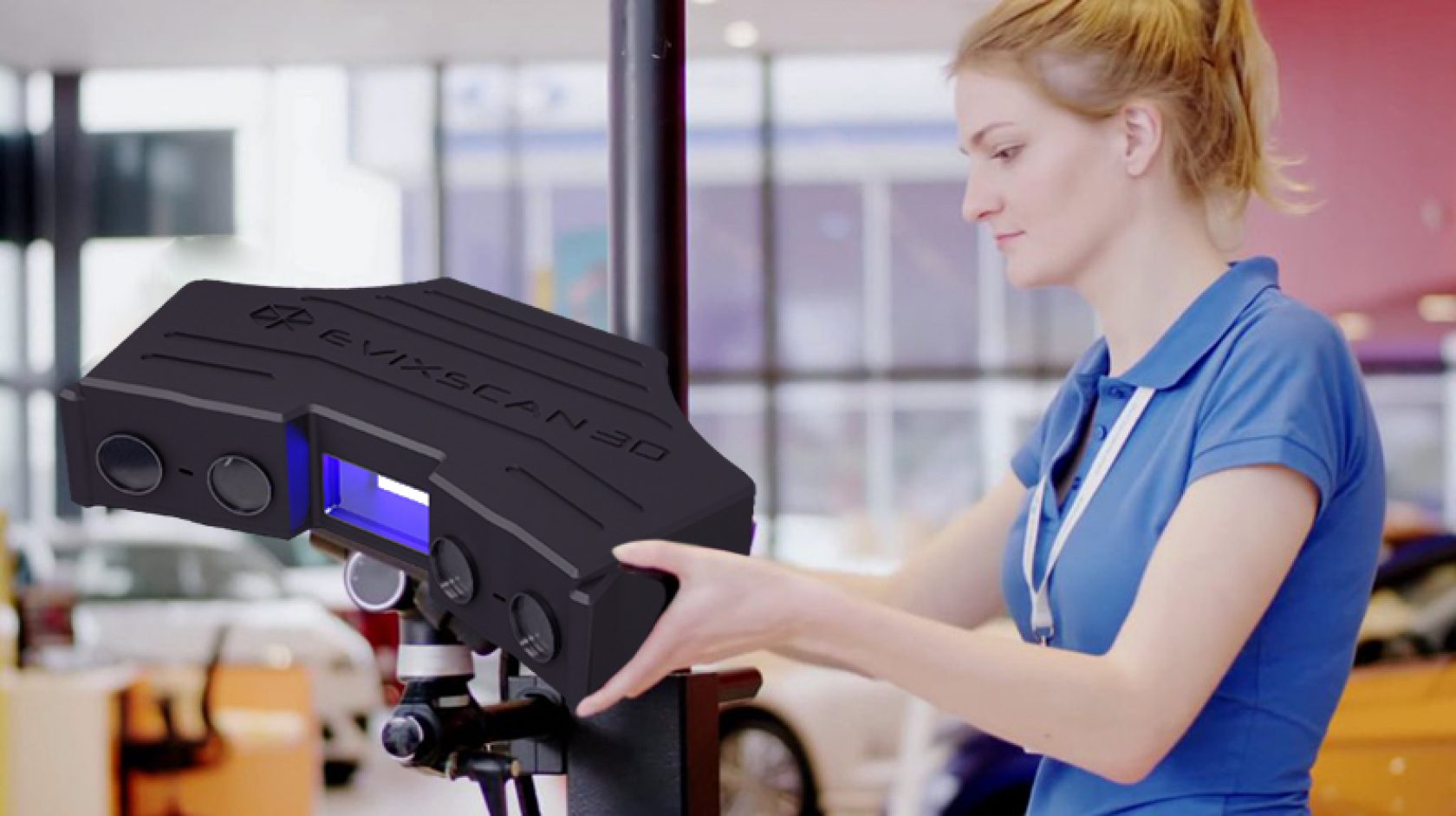

- Column Stand
- Software Geomagic Control X
For full detail of an accessories visit this page
Software
Software provides the user with extensive and friendly tools for scanning and processing meshes. Thanks to the transparent operation, the user will easily go through all stages of 3D scanning, from the basic configuration to the final processing of the triangle mesh, which significantly improves the productivity of working with the eviXscan 3D scanners.
