Fine precision

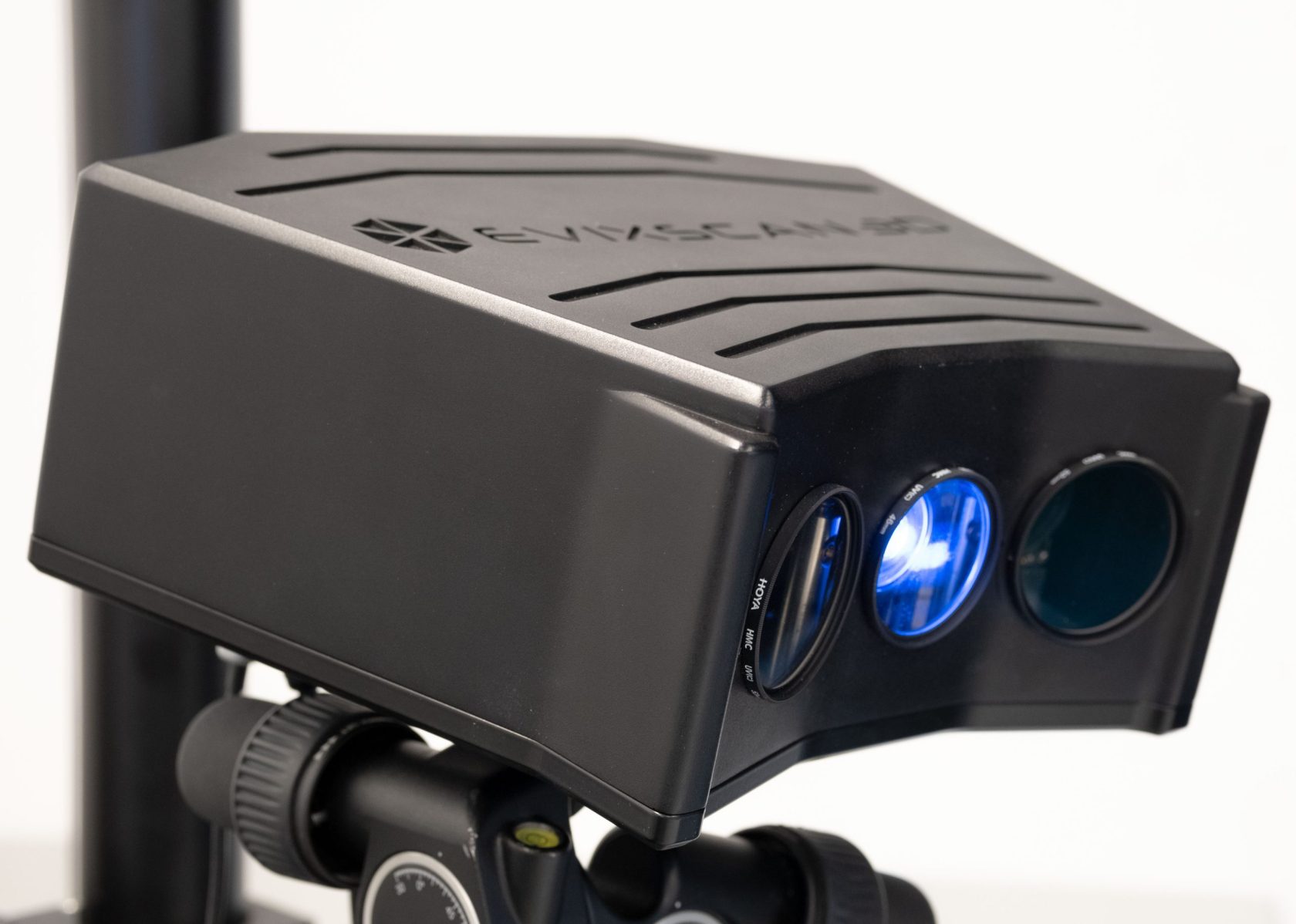

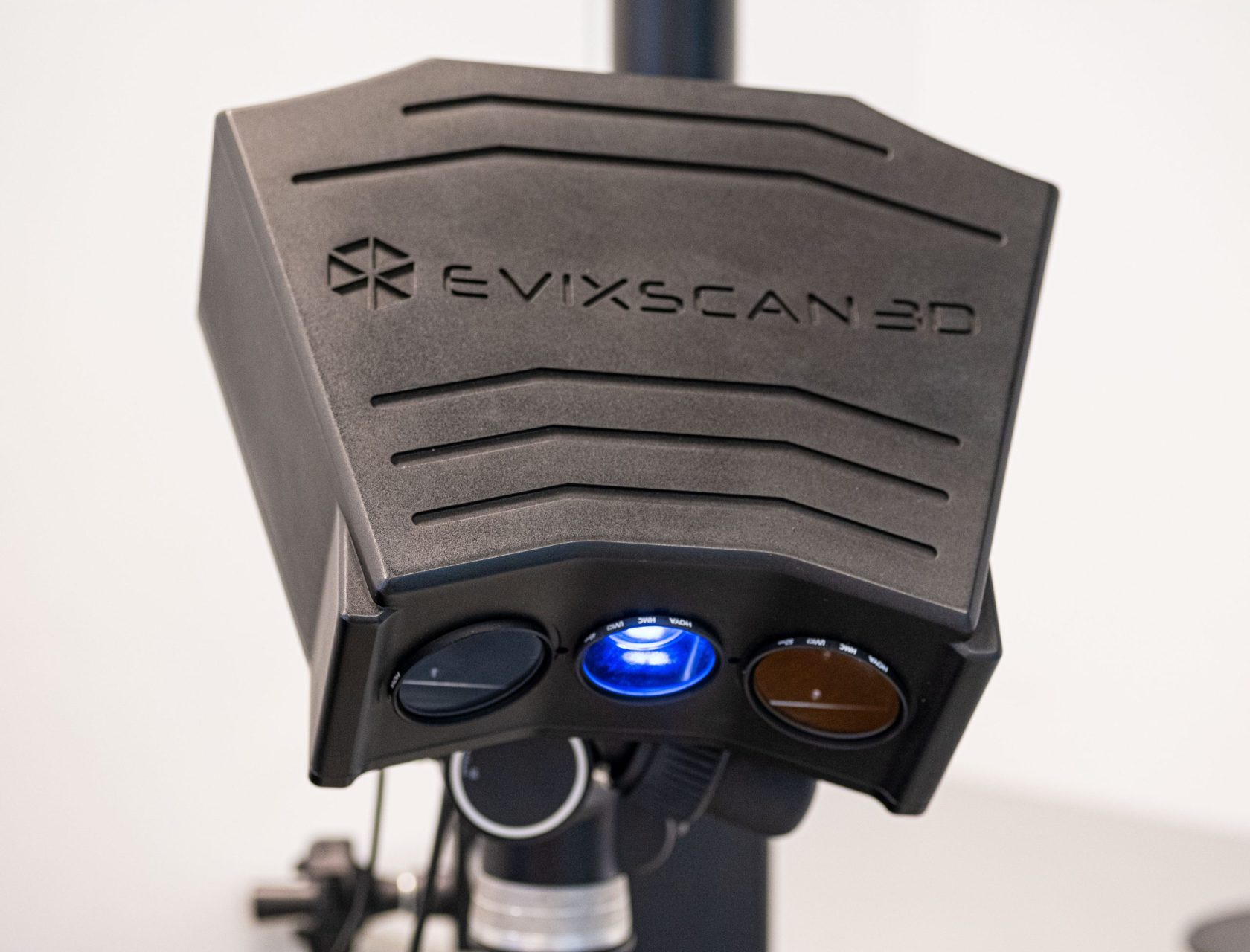

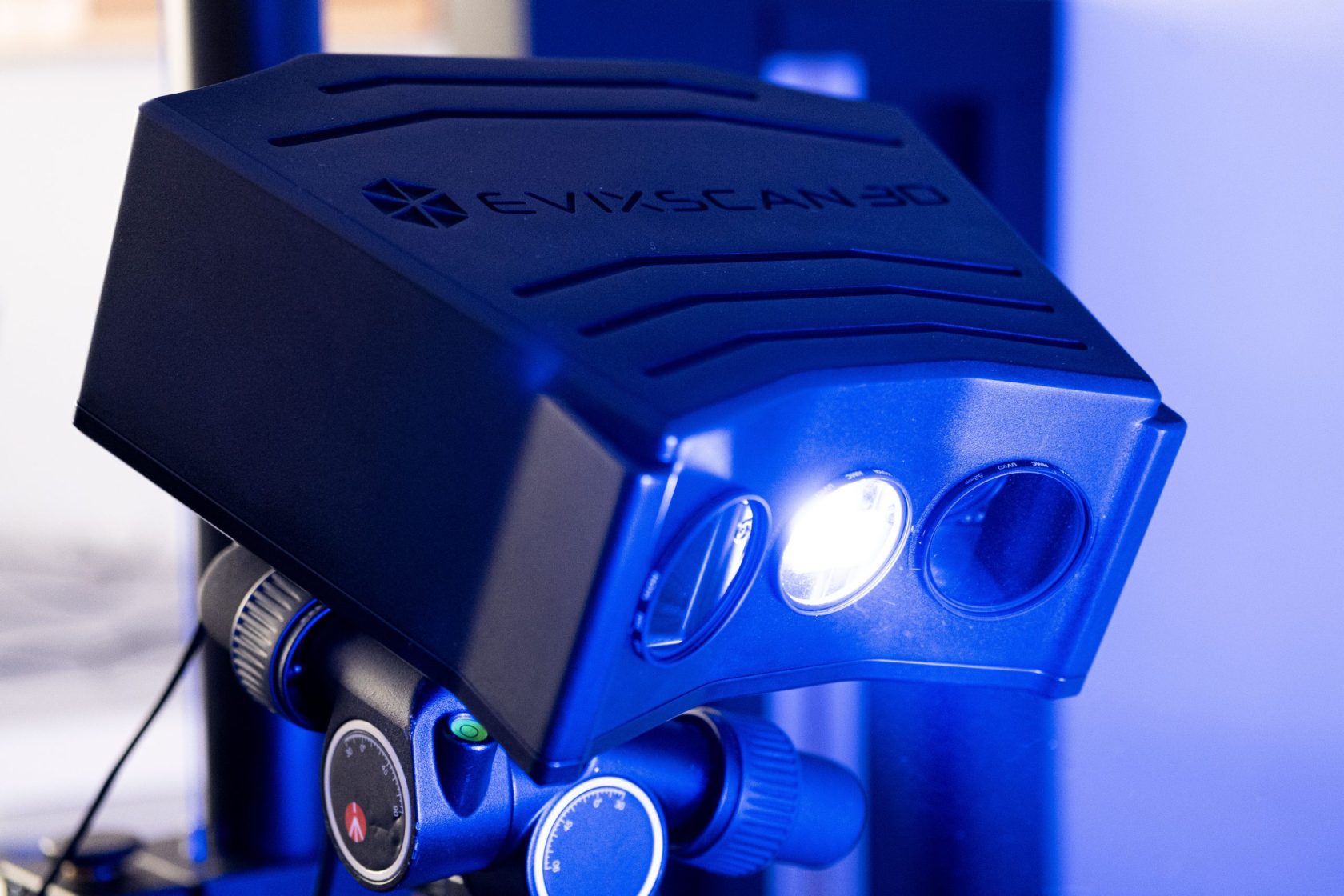

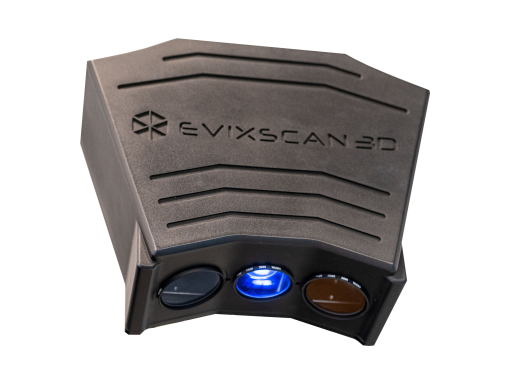

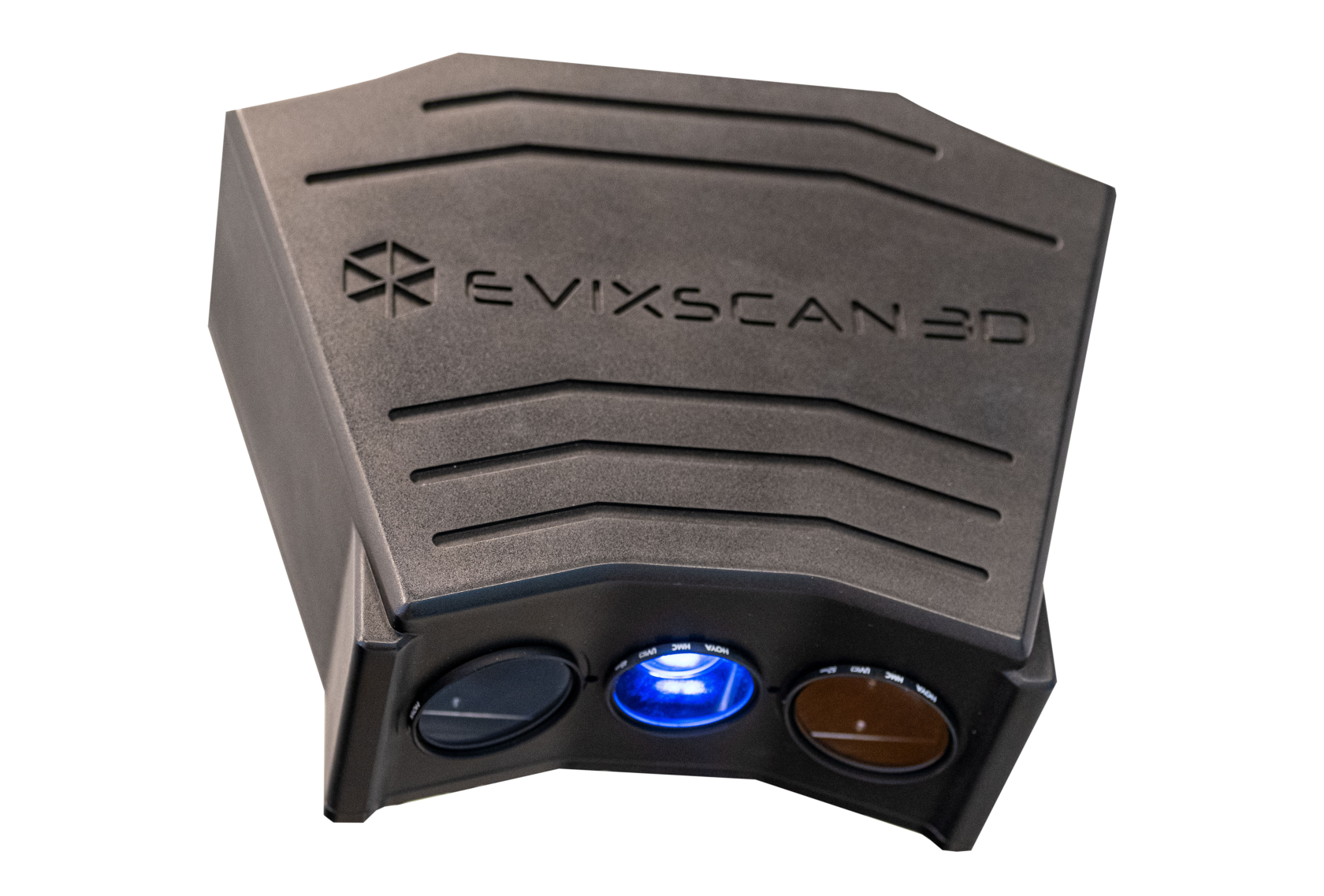

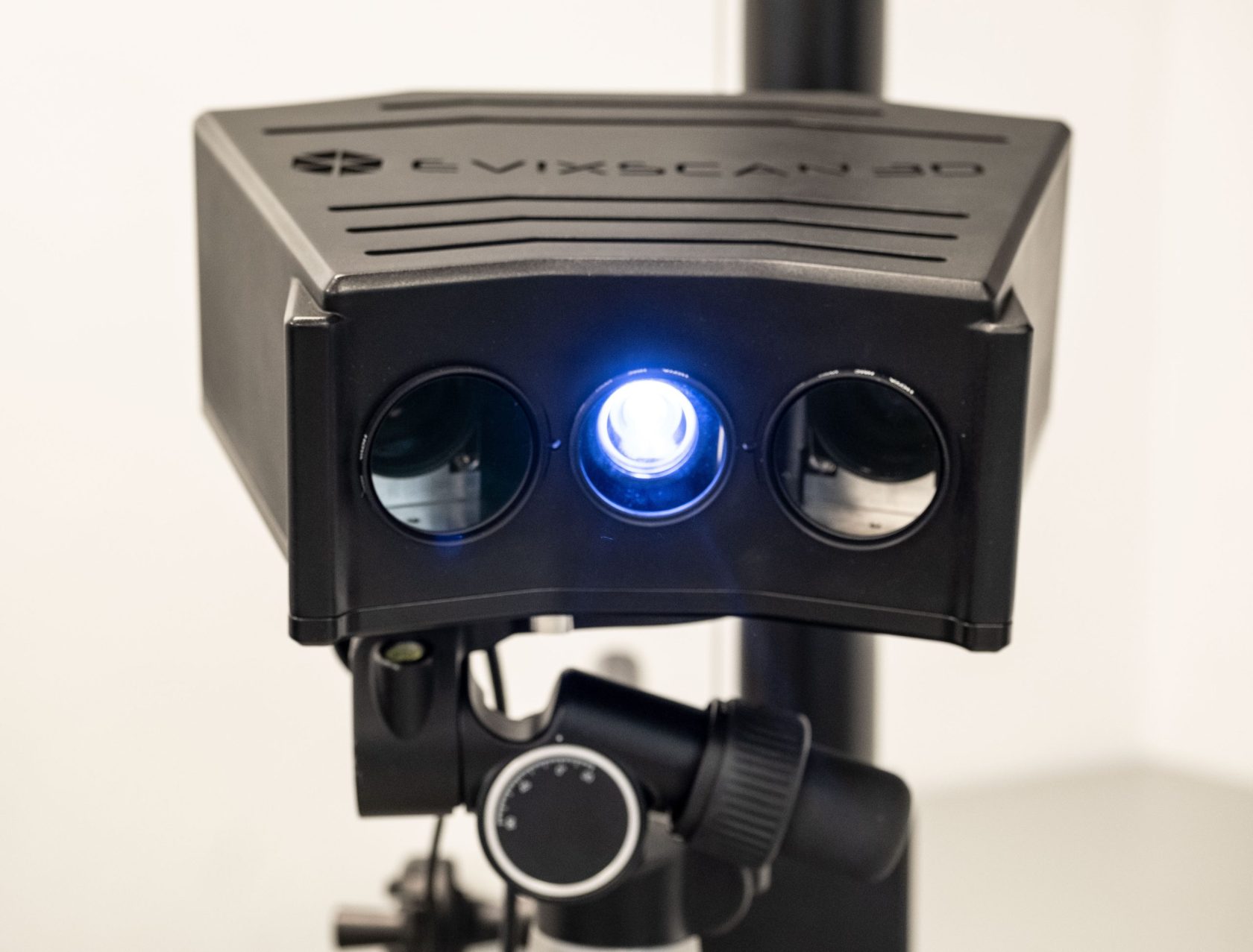

Precision 3D scanning in the smallest detail FinePrecision is an optical measuring device that can be used to collect more than 1200 points per square millimeter of scanned area. A single scan gives the possibility to acquire data in the volume of 120 x 60 x 45 mm. Thanks to the blue structured light scanning technology the noise on the scans due to ambient light can be significantly minimized. The combination of a new generation of high-speed cameras with the fast frame collection triggered by the projection system allows to reduce the scanning time below 1 second.
| Category | 3D scanners |
|---|---|
| Our solution | NDT |
| Supplier | EviXscan 3D |
Main features and benefits of the device
- High precision scanning of small objects
- Very accurate reproduction of scanned surface
- Scanning time below 1 second
- The ability to scan dark-surface objects
- Compact design
| Light source type | Blue LED |
| Number and type of cameras | 2 x 8,9 Mpix |
| Scanning accuracy | up to 0.009 mm |
| Scanning time | 1 second |
| Measuring range | 120 x 60 x 32 mm |
| Points density | 1 133 pt/mm2 |
| Computer connection | USB 3.0 |
| Export formats | stl, ply, obj, asc, bin |
| Hardware requirements | Windows 10 (64 bit) |
| Software | eviXscan 3D Suite |
Options and accessories
- Standard set – rotary table, markers, toolkit box and tripod
- Blue filters
- Rotary tables
- Toolkit box
- Tripod
- Column Stand
- Software Geomagic Control X
For full detail of an accessories visit this page
Software
Software provides the user with extensive and friendly tools for scanning and processing meshes. Thanks to the transparent operation, the user will easily go through all stages of 3D scanning, from the basic configuration to the final processing of the triangle mesh, which significantly improves the productivity of working with the eviXscan 3D scanners.
